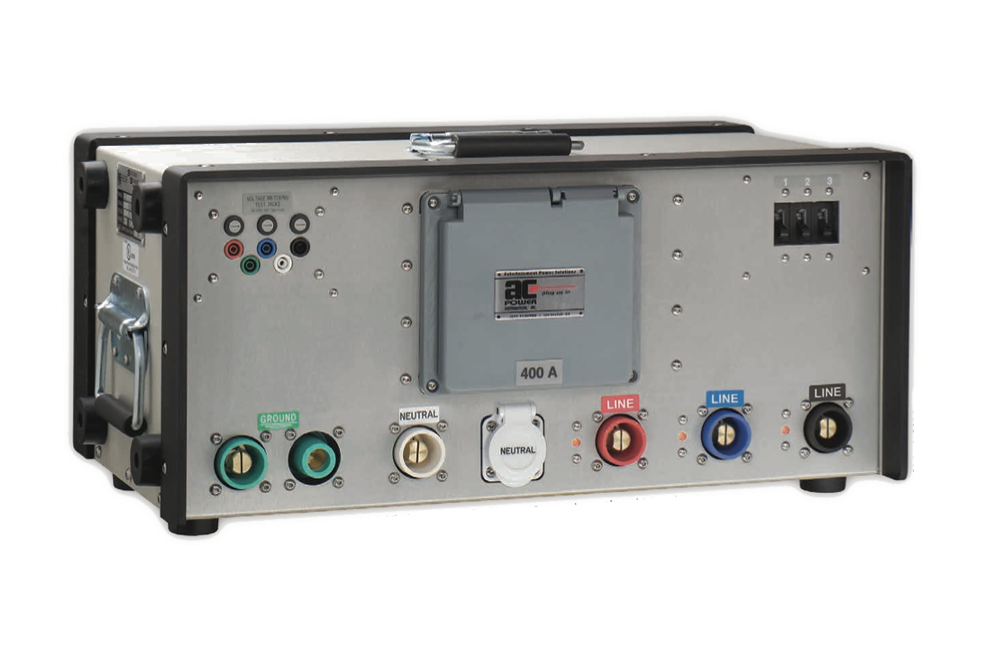

400A Portable Disconnect Box (Adjustable)

Model #: SST-CF400PCS-3A — Type 3R Outdoor Rate w/GFCI Convenience Recepts.
Dimensions: 23”L x 13”W x 11”H - 75 lbs.

Input Type:

5-wire Camlock w/ Double Neutral

Rating: 400A, 120/208V 3Ø

Output Types:

2 Parallel Outputs of 5-wire Camlock w/ Double Neutral

Rating: 160A - 400A, 120/208V 3Ø

Circuit Protection: 1 400A 3-pole Electronic Trip Breaker (65K AIC) Adjustable over-current from 160A-400A

—

3 NEMA 5-20 Duplex

Rating: 20A, 120V

Circuit Protection: 3 20A 1-pole Brance Rated Breaker (10k AIC)

—

Voltage Meter Test Jacks

Rating: Not for load

Circuit Protection: Fuse Protected

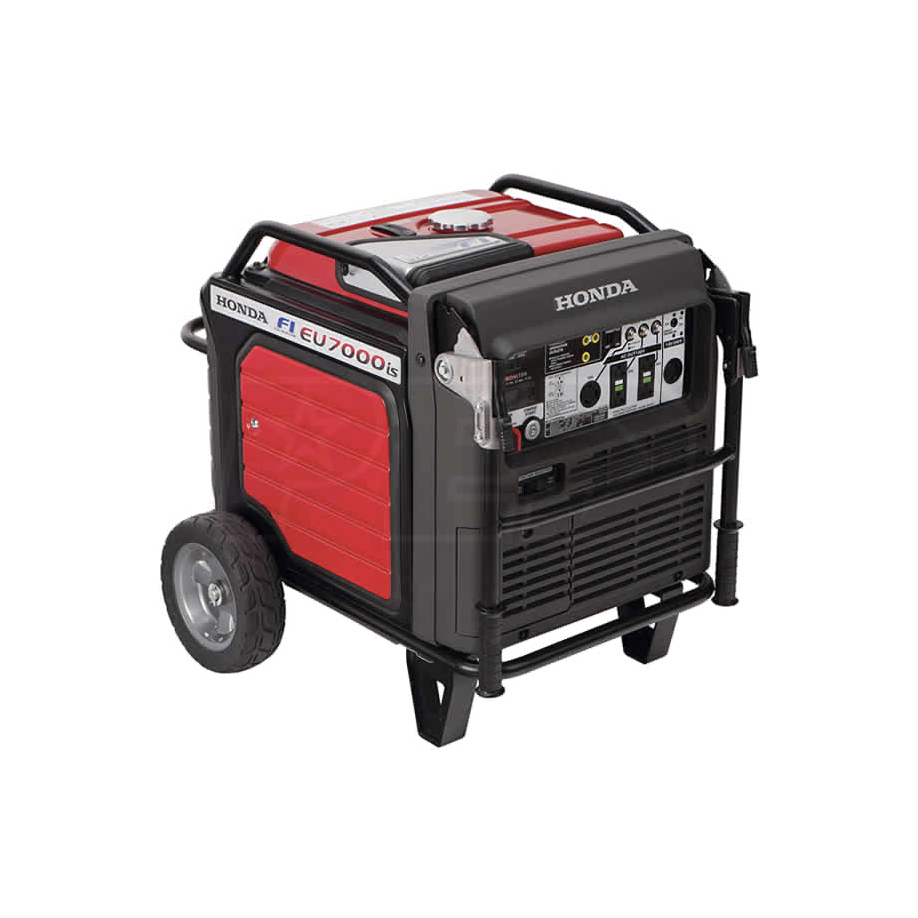

EU 7000 (60A) Honda Generator

Engine: Honda GX390 EFI
Dimensions: (L x W x H) 33.4" x 27.6" x 28.4", 261 lbs.

AC Output

120/240V 7000W max. (58.3/29.1A)
5500W rated (45.8/22.9A)

Receptacles

20A 125V GFCI Duplex (2)
30A 125V Locking Plug
30A 125/250V Locking Plug

Starting System

Recoil, electric

Fuel Tank Capacity

5.1 gal.

Run Time per Tankful

6.5 hrs.@ rated load, 18.0 hrs. @ 1/4 load

Noise Level

58 dB(A) @ rated load, 52 dB(A) @ 1/4 load

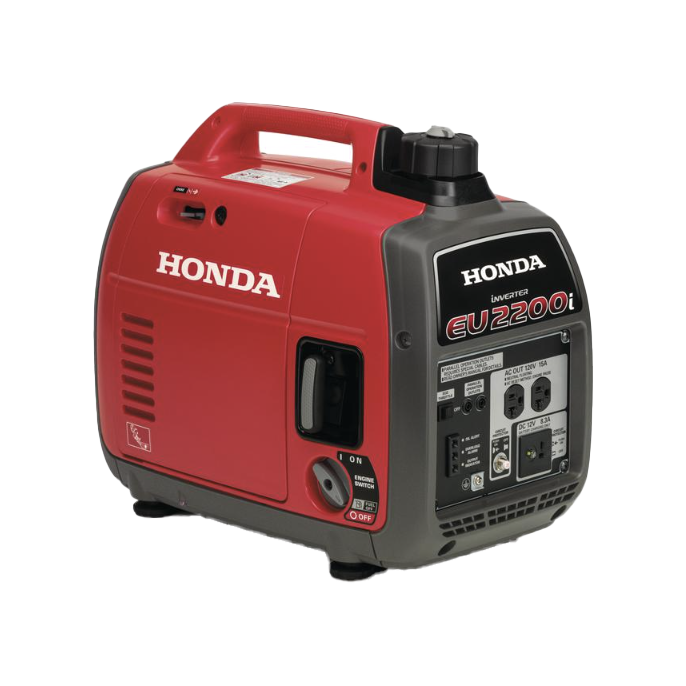

EU 2000 (25A) Honda Generator

Model name: EU2200ITA, Engine: Honda GXR120

Dimensions: (L x W x H)20.0" x 11.4" x 16.7", 46.5 lbs

AC Output

120V 2200W max. (18.3A), 1800W rated (15A)

Receptacles

20A 125V Duplex

DC Output

12V, 100W (8.3A)

Starting System

Recoil

Fuel Tank Capacity

.95 gal

Run Time per Tankful

3.2hr @ rated load 8.1 hrs @ 1/4 load

Noise Level

57 dB(A) @ rated load 48 dB(A) @ 1/4 load

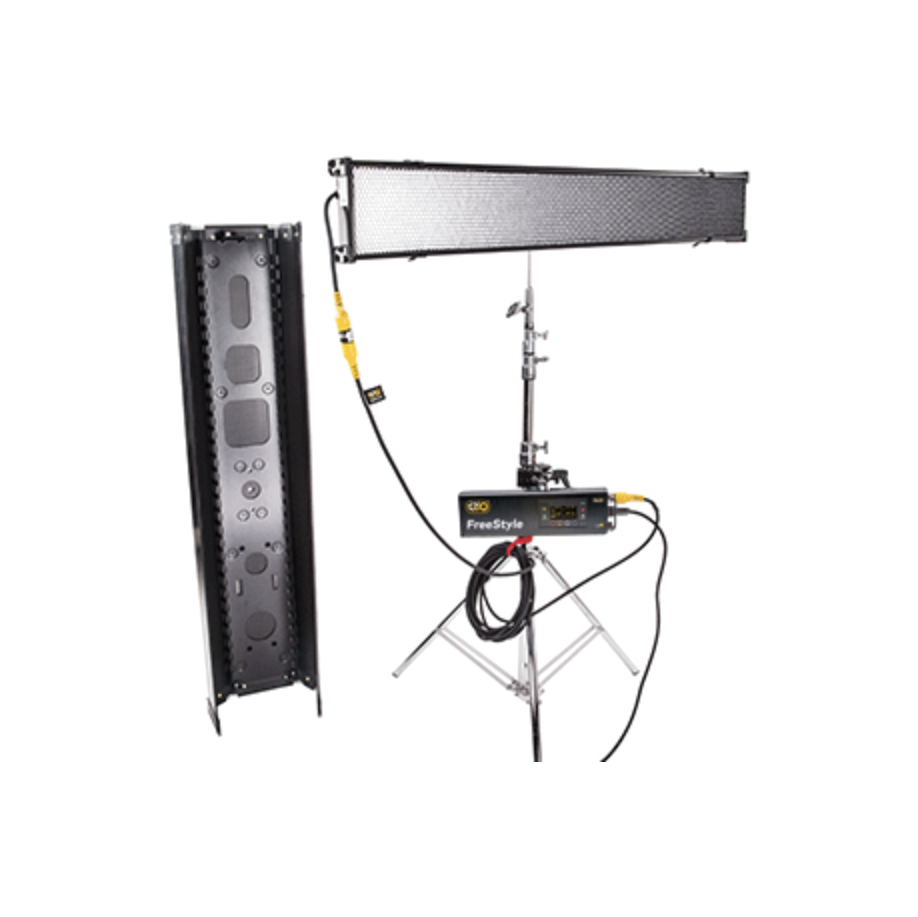

Freestyled LED 41 DMX Kit, Univ Complete

Features:

• Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103

• Kelvin presets

• Dial-in color temperature control between 2500K-9900K

• Green/Magenta Control

• Hue angle and Saturation adjustments

• Kino Flo presets and Gels

• RGB control

• CIE xy

• FX Control

• Camera Profiles LUTs

• Color Space

• Works with Apps with predetermined RGB presets or color wheels

• Can use preset buttons to store custom Kelvin settings

• Light levels do not change when selecting Kelvin settings

• No color shift while dimming

• Universal input 100VAC-240VAC or 24VDC

• Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC

• Flicker-free, quiet operation

• Full range onboard and DMX dimming

• DMX wireless link (Lumen Radio®)

• DMX Auto Terminate

Design:

• Remote fixture with built-in barndoors

• Removable LED panel with center mount and molded corner mounts

• Fixture includes removable 90° Honeycomb Louver

• Honeycomb louver also available in 60° as accessory

• Removable Center Mount

• KinoGrip Center Mount

• Lightweight, slim profile

• Mounts to stand, light enough to be hand-held

• Controller operates remotely with extension cable up to 50f

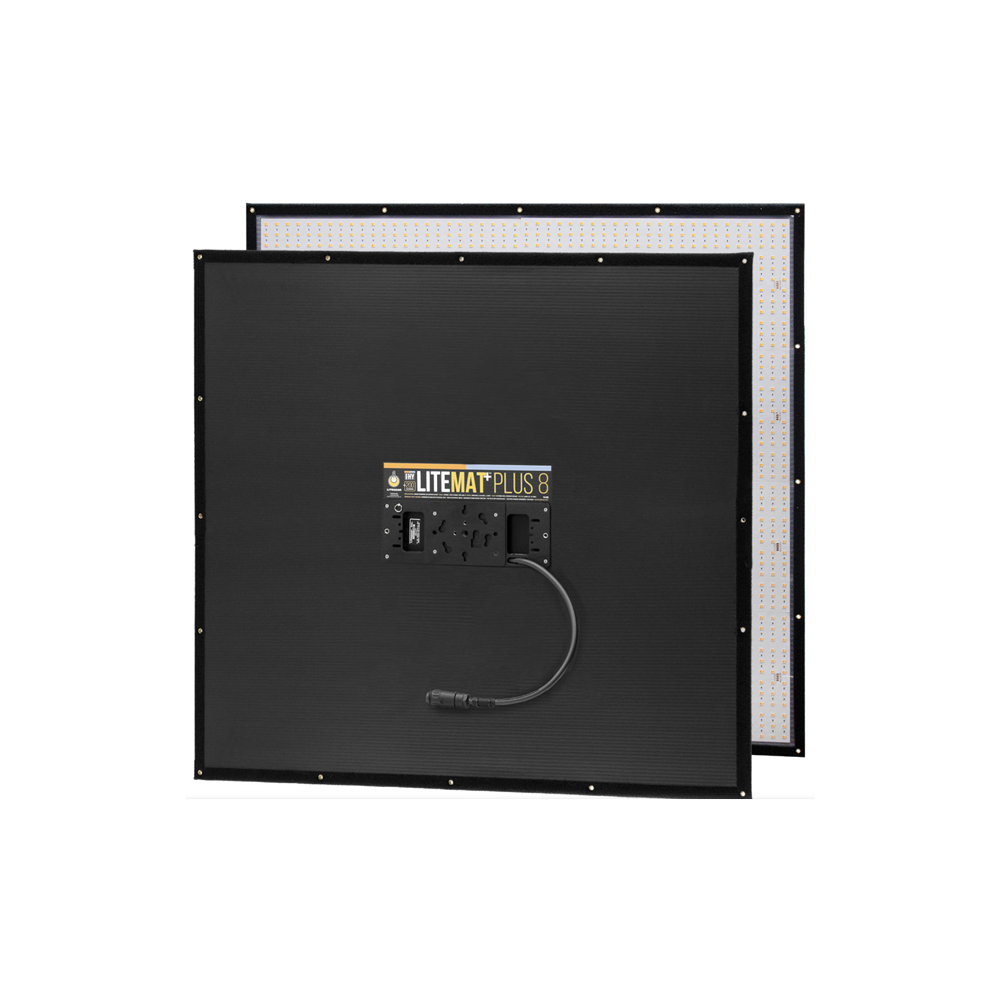

Litemat 8 Plus Kits Complete

Size: (LxWxH) 40 in. x 40 in. x .9 in. (1016mm x 1016mm x 23mm)
Weight: 10.4 oz, 4.72g

VOLTAGE

24VDC

CURRENT

16.67A

POWER RATING

400W

LED QUANTITY

4608

CRI:

95+

CCT:

2600K-6000K
